PASSENGER MANUAL LIFTS |

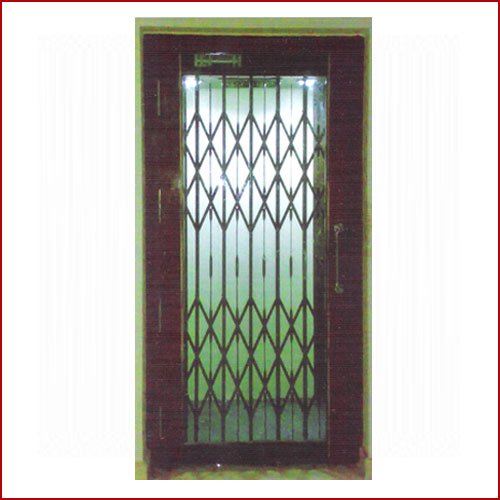

Doors such as Collapsible Gate, Swing Door with Door Frame, Manual Telescopic Door with Door Frame and Manual Imperforated Gate with Door Frame are available in Machine Steel or Stainless Steel finishes. Colour combinations both for the cabin and doors can be customised to satisfy all needs. |
No of Passenger | Load Kg | Car (A) width | Car (B) width | Shaft (C) depth | Shaft (D) depth | Opening (E) | M/c room (F) width | M/c room (G) depth | M/c room (H0 height | Pit (I) depth | Overhead (J) |
4 | 272 | 1000 | 700 | 1500 | 1150 | 750 | 3100 | 3700 | 2750 | 1500 | 4250 |
5 | 340 | 1100 | 850 | 1500 | 1300 | 750 | 3100 | 3700 | 2750 | 1500 | 4250 |
6 | 408 | 1200 | 900 | 1650 | 1350 | 750 | 3200 | 3900 | 2750 | 1500 | 4250 |
8 | 544 | 1300 | 1100 | 1750 | 1550 | 800 | 3200 | 3900 | 2750 | 1500 | 4250 |
