AUTOMATIC LIFTS |

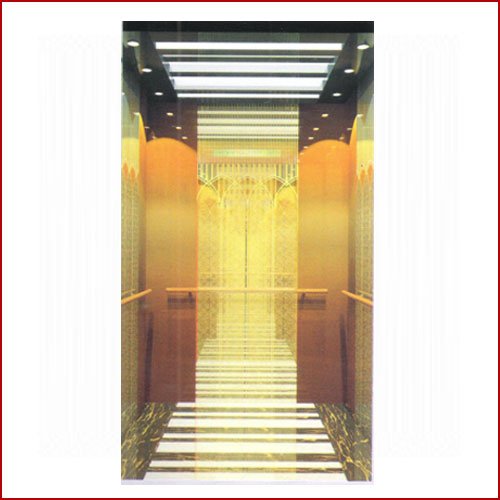

Elevator cabins are available in Stainless Steel and M S Powder coated finishes in Standard or Customized specifications. Our special "Sigma Gold Series" is dedicated to people who love extreme luxury. The cabin is available in Gold and Silver Stainless Steel finish in either plain, brush or etching finishes. with LED lighting in different hues which give a sparkling effect to the cabin. Also to enhance the cabin looks Car Operating Panels ( COPS ) and Landing Operating Panels ( LOPS ) are available in a variety of designs with standard as well as premium push buttons designs. |
No of Passenger | Load Kg | Car (A) width | Car (B) width | Shaft (C) depth | Shaft (D) depth | Opening (E) | M/c room (F) width | M/c room (G) depth | M/c room (H0 height | Pit (I) depth | Overhead (J) |
6 | 408 | 1100 | 1000 | 1700 | 1600 | 700 | 2700 | 3600 | 2900 | 1500 | 4250 |
8 | 544 | 1300 | 1100 | 1800 | 1800 | 800 | 2800 | 3800 | 2900 | 1500 | 4250 |
10 | 680 | 1350 | 1300 | 1850 | 2000 | 800 | 3100 | 4000 | 2900 | 1600 | 4250 |
13 | 884 | 2000 | 1000 | 2500 | 1800 | 900 | 3500 | 4000 | 2900 | 1600 | 4250 |
16 | 1088 | 2000 | 1300 | 2500 | 2000 | 1000 | 3500 | 4200 | 1900 | 1+00 | 4250 |
20 | 1360 | 2000 | 1550 | 2500 | 2250 | 1000 | 3500 | 4200 | 2900 | 1600 | 4250 |
24 | 1632 | 2150 | 1650 | 2700 | 2400 | 1200 | 4000 | 4500 | 2900 | 1700 | 4250 |
