Sigma Mini

PMSM Gearless Machines for Home Elevators

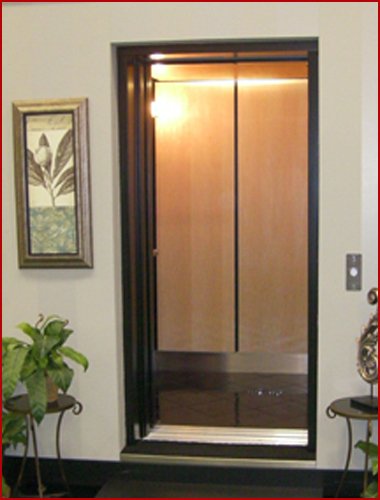

The new Sigma Mini simplifies vertical mobility inside your home.
Travel comfortably to every floor.
Give elderly and dependent people the freedom to move from floor to floor without using the stairs.
Sigma Mini is a Gearless PMSM machine, ideal for loads up to 300 kg and travel up to 15 meters.
Sigma Mini is compact and facilitates elevators with a minimum of space and civil work.
Sigma Mini operates on single-phase 230V domestic power supply and also on 3 phase power supply.
Sigma Mini is silent, it uses no oil, reduces power consumption and is also eco-friendly.
Pit needed is only 300 mm and overhead needed is only 3000 mm.

S P E C I F I C A T I O N S


Duty Load (Kg.)	Equivalent Pass. Capacity (Nos.) Up To	Speed (m/s)	Rope Dia. (mm)	Pulley Dia. (mm)	No. of Ropes	Nominal consumption (A)	Nominal Power (Kw)	Nominal Power (HP)	RPM	Rated Frequency (Hz.)	Rated Torque (Nm)	Voltage (V)	Machine weight (kg) Approx.	Suitable Single Phase 230 VAC, 50 Hz, KEB drive
300	4	0.32	6	200	4	5.5	1.3	1.7	60	12	100	230	80	1.5kv

Single point of contact for Sigma Mini Home Lift Gearless machine and Control Panel configured with KEB Drive

Timely delivery of Packaged Products

UPS Interface:During power failure, Sigma Mini Home Lift Controller provides UPS Compatible uninterrupted rescue operation

PRODUCT SPECIFICATIONS
Description	Specially Designed Single Phase Control Panel for Sigma Mini Grearless Machines Incorporated with Suitable KEB DRIVE
Enclosure	Protection: IP 21; Mounting: Wall Approx. - Dimensions (mm): H:600 X W:400 X D:300 Weight- 30 Kg
Operating Voltage	230V ±10%, 50 Hz. ±3%, Single Phase
Operating Temperature	-50 to 450 C

Simplex Down collective

Inspection operation

Direction Indicators

Call registration Indication

7 Segment Display for Floor indication (B, G, 1, 2, 3, OR G, 1, 2, 3, 4)

Auto Fan off

UPS Compatible
