GOODS LIFTS |

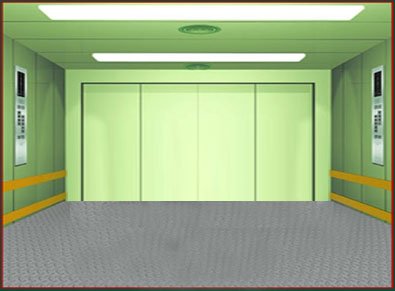

Goods lifts are available from 500 kgs capacity to 5 Tons capacity and can be customised. Car flooring in M S Chequered plate or SS Chequered plate can be provided. |
Load Kg. | Car (A) width | Car (B) width | Shaft (C) depth | Shaft (D) depth | Opening (E) | M/c room (F) width | M/c Room (G) depth | M/c room (H) height | Pit (I) depth | Overhead (J) |
500 | 1100 | 1200 | 1900 | 1500 | 1000 | 3400 | 4000 | 2750 | 1500 | 4500 |
800 | 1200 | 1700 | 2000 | 2100 | 1000 | 3500 | 4600 | 2750 | 1500 | 4500 |
1000 | 1400 | 1800 | 2300 | 2100 | 1200 | 3800 | 4600 | 2900 | 1600 | 4500 |
1500 | 1700 | 2000 | 2500 | 2300 | 1500 | 4000 | 4800 | 2900 | 1600 | 4500 |
2000 | 1700 | 2500 | 2500 | 2800 | 1500 | 4000 | 5300 | 2900 | 1600 | 4500 |
2500 | 2000 | 2500 | 2900 | 2800 | 1700 | 4400 | 5300 | 2900 | 1700 | 4500 |
3000 | 2000 | 3000 | 29000 | 3300 | 2000 | 4400 | 5800 | 2900 | 1700 | 4500 |
4000 | 2500 | 3000 | 3700 | 3300 | 2500 | 4500 | 5800 | 2900 | 1700 | 4500 |
5000 | 2500 | 3600 | 3700 | 3900 | 2500 | 4500 | 6400 | 2900 | 1800 | 4500 |
