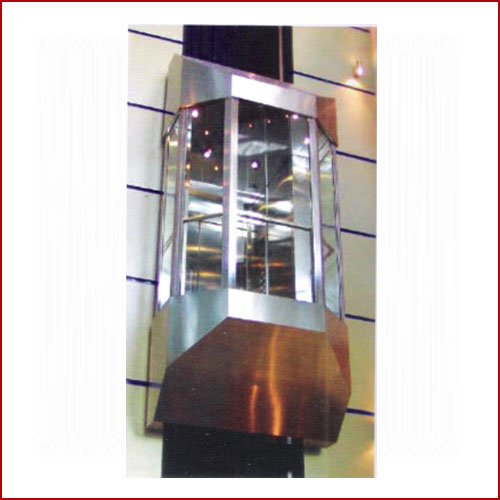

CAPSULE LIFTS |
 |
 |
 |
| Capsule Lifts such as 3 Sides Glass, 5 Sides Glass, Rear Panel Glass, Round Glass etc. are available in a variety of combinations as per the customers choice. Also available are special SS finishes in Gold Etching and Silver finishes with Special Buttons. |
| Load | Car Size | Shaft Size | Entrance | Machine Room | |||||||
| Capacity (Persons) | Weight (Kg's.) | Widht (A) | Depth (B) | Width (C) | Width (C-1) | Width (D) | Depth (D-1) | Width (E) | wIDTH (F) | Depth (G) | Height (H) |
| 8 | 544 | 1100 | 1400 | 2100 | 1300 | 1300 | 1950 | 800 | 4000 | 4000 | 2900 |
| 10 | 680 | 1350 | 1400 | 2400 | 1550 | 1300 | 1950 | 800 | 4000 | 4000 | 2900 |
| 13 | 884 | 1350 | 1700 | 2400 | 1550 | 1600 | 2250 | 900 | 4400 | 4400 | 2900 |
| 16 | 1088 | 1600 | 1700 | 2600 | 1800 | 1600 | 2250 | 1000 | 4400 | 4400 | 2900 |
| 20 | 1360 | 1600 | 2000 | 2800 | 1800 | 1900 | 2550 | 1000 | 4400 | 4400 | 2900 |
